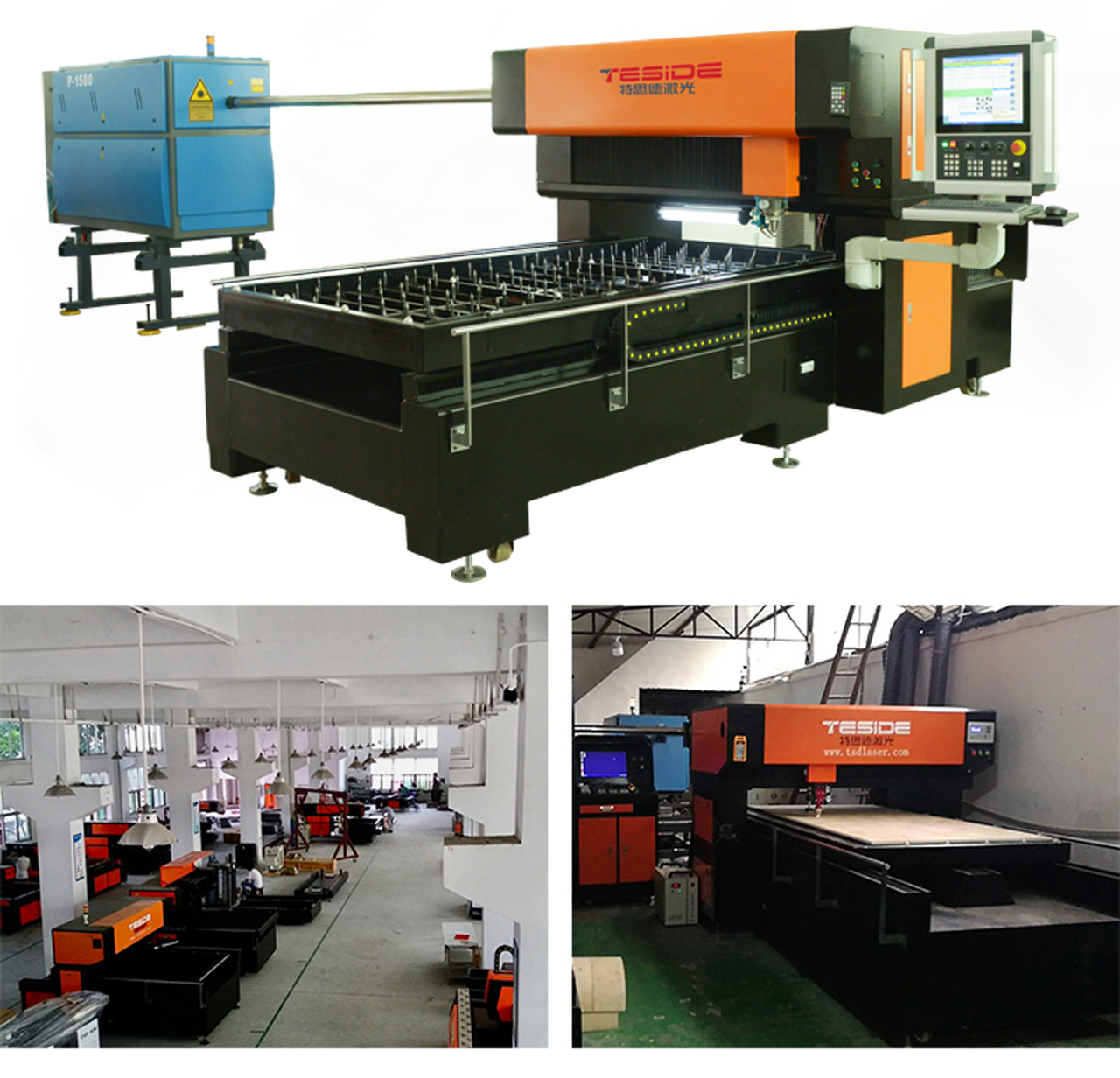

1500W Die  board laser cutting machine

1500W Die board laser cutting machine

1500W die board laser cutting machine

Description

Machine Features:

1.  Adopt Gantry style and mixed laser path structure, machine table bed hard and stable in working, small floor space required for machine, laser optical path short, adopt imported reflect mirror and lens from America to make laser path thinner and the cut stronger.

2.  Intelligent Electronic Laser cutting head coming with automatic touching system, automatically adjustment to adapt the jagged materials and keep cutting precision.

3.  Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.

4.  Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment for operator.

5.  Automatic gas control system to ensure low energy consumption operation power consumption and gas consumption.

6.  Software is easy to operate, simple and easy to understand

7.  Be equipped with the optical path gas compensation function that can avoid difference and divergence of the beam and during the conduction process by gas disturbance, and can always maintain the positive pressure of clean gas in the optical cavity to prevent external smoke and enter in.

8.  Be equipped with the full compensation device in optical path of autonomous developed, to ensure the consistency of the beam diameter and the constancy of the focus in the entire range of processing.
